GROUND 15 subwoofer features an innovative electro-acoustic design with an exclusively in-house developed DSP that has no parallel.
Components are all MADE IN ITALY, as well as the birch plywood enclosure with two-component polyurethane coating which guarantees an IP55 protection, as required by the most demanding standards.
The all-Italian M3 design team equipped the GROUND15 with a 15″ neodymium woofer; the woofer is angled to minimize space requirements while maintaining the tuning for a defined and powerful punching sound. The careful study of the cabinet and the combination between the amplifier and the transducers guarantees a 36Hz – 100Hz frequency response (-3db) with a 136dB Max SPL (half space).
High CMRR input stage, with a proprietary circuitry, ensures extreme Low and High-frequency noise rejection, preventing interference in the audio and high frequency range (low conducted EMI).
The exclusive Italian DSP (96kHz 24bit floating point) offers a new potential: Hybrid BIQUADS-FIR tuning, i.e. processing with Biquads and FIR filters providing unlimited possibilities for a linear phase equalization.
Totally Made in Italy class-D amplifier offers 2400W RMS. The use of Italian top-of-the-range transducers, specifically chosen for the purpose, guarantees a listening experience that is always pleasant and never fatiguing.

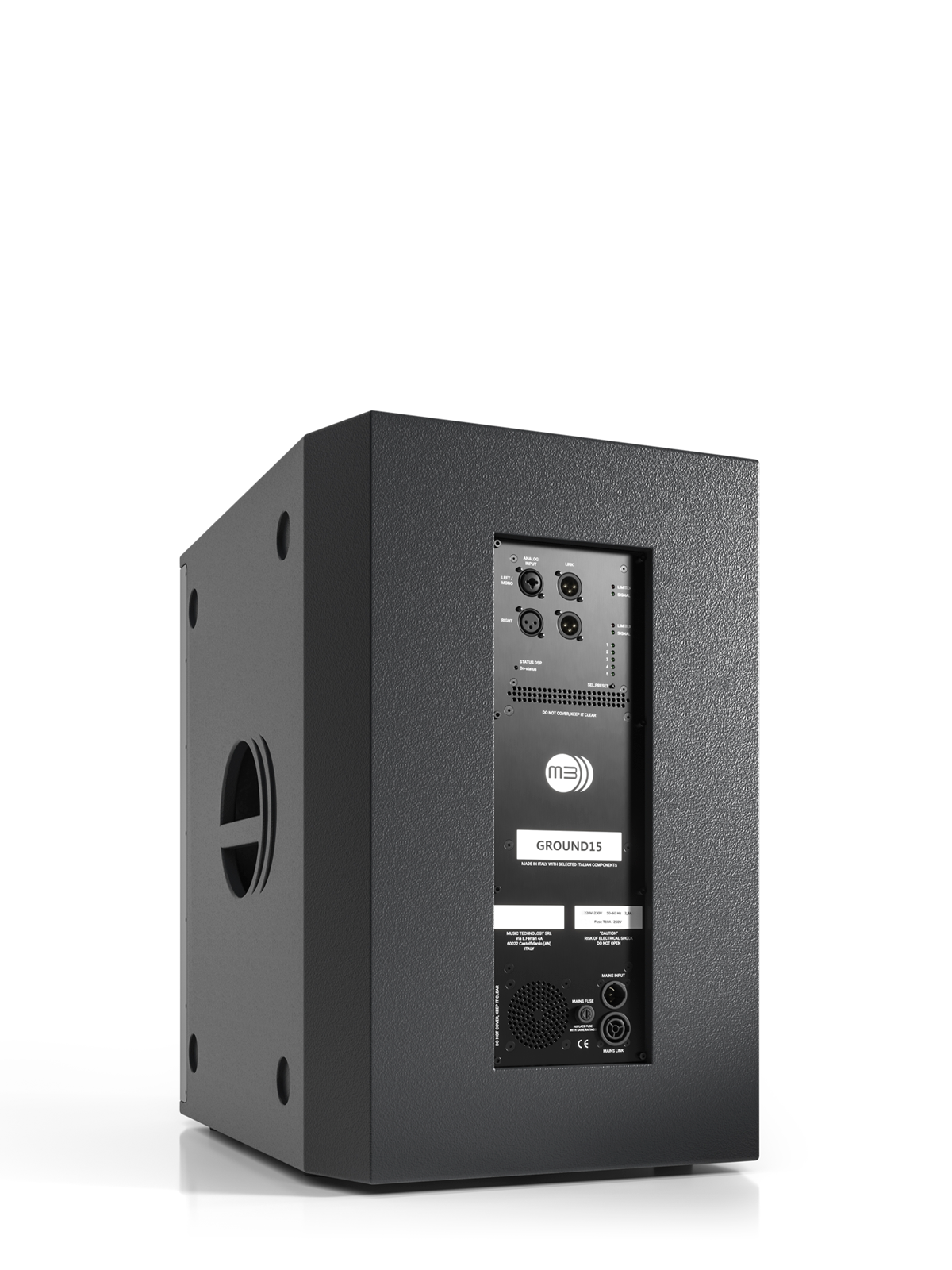

The rear panel features a Power inlet and outlet, 2x Combo XLR IN and an 2 x XLR OUT plus a Pushbutton with the possibility of recalling 5 factory presets to suit every type of use. The loudspeaker features every kind of protection systems: Thermal, Short Circuit, Overload.
The cabinet accommodates an M20 threaded insert; the 15/10 sheet metal grille is powder-coated with a dust-proof and moisture-proof inner lining. The handles are integrated on the sides of the cabinet.
• 15” neodymium Woofer
• SPL Max (half space): 136dB
• Proprietary DSP (96kHz 24bit floating point) Hybrid BIQUADS-FIR tuning
• Class-D Power amp 2400W
• 5 presets: Natural-Punch-Cardioid-Sky210/GND18-Sky6/Sky63
• Birch Plywood Enclosure – RAL 7021 IP55 coating
• Theatre
• Conference Rooms
• Rental
• Medium Venues
• System Integration
